Ceramic post insulator M8 stainless steel insert

code B28ISO35X35M8/I
CERAMIC POST INSULATOR S35 M8 STAINLESS INSERT

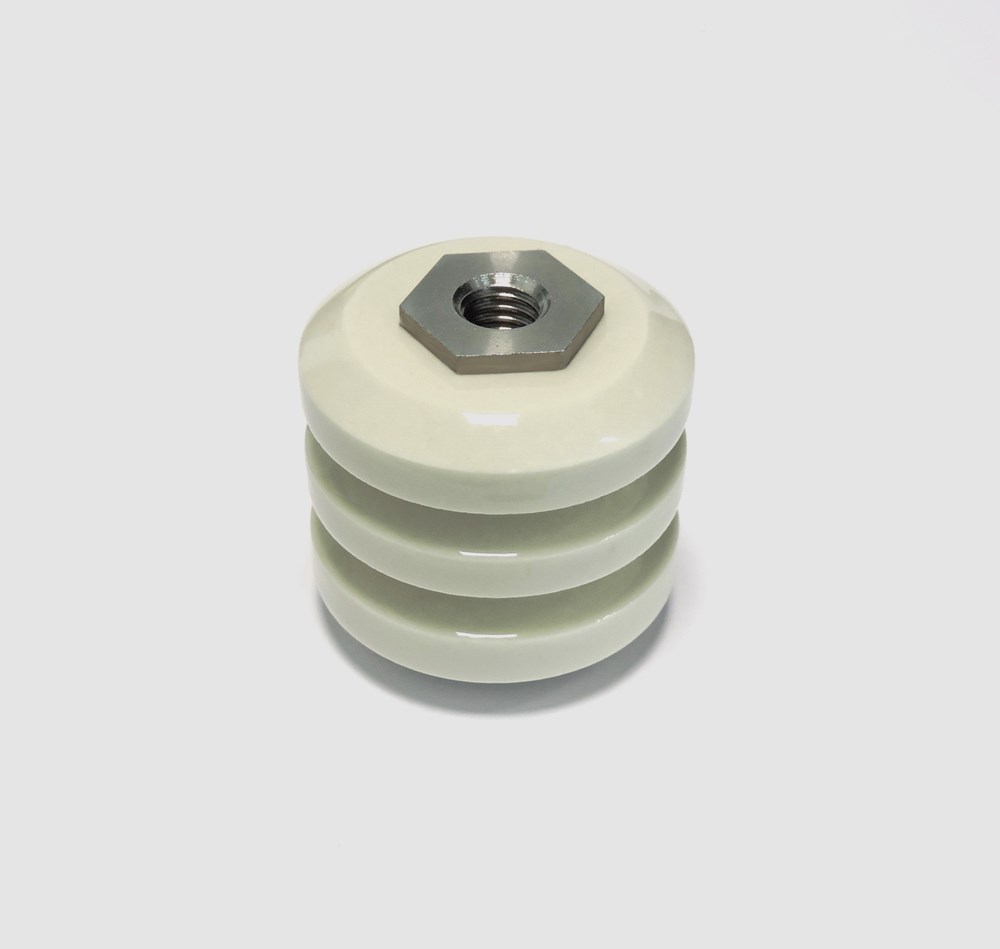

Ceramic post insulator with M8 stainless steel inserts.

Ideal solution for equipment exposed to highly aggressive environments, for indoor and outdoor environments.

The glazed surface guarantees a fast and accurate cleaning.

The ceramic material offers the maximum guarantee against the risk of fire spreading.





Housing materialTechnical ceramic C221
Inserts material
Stainless steel
Temperature of use -50°C ÷ 200°C
Creepage line lenght 60 mm
Dielectric test at dry condition16kV-60s-50Hz

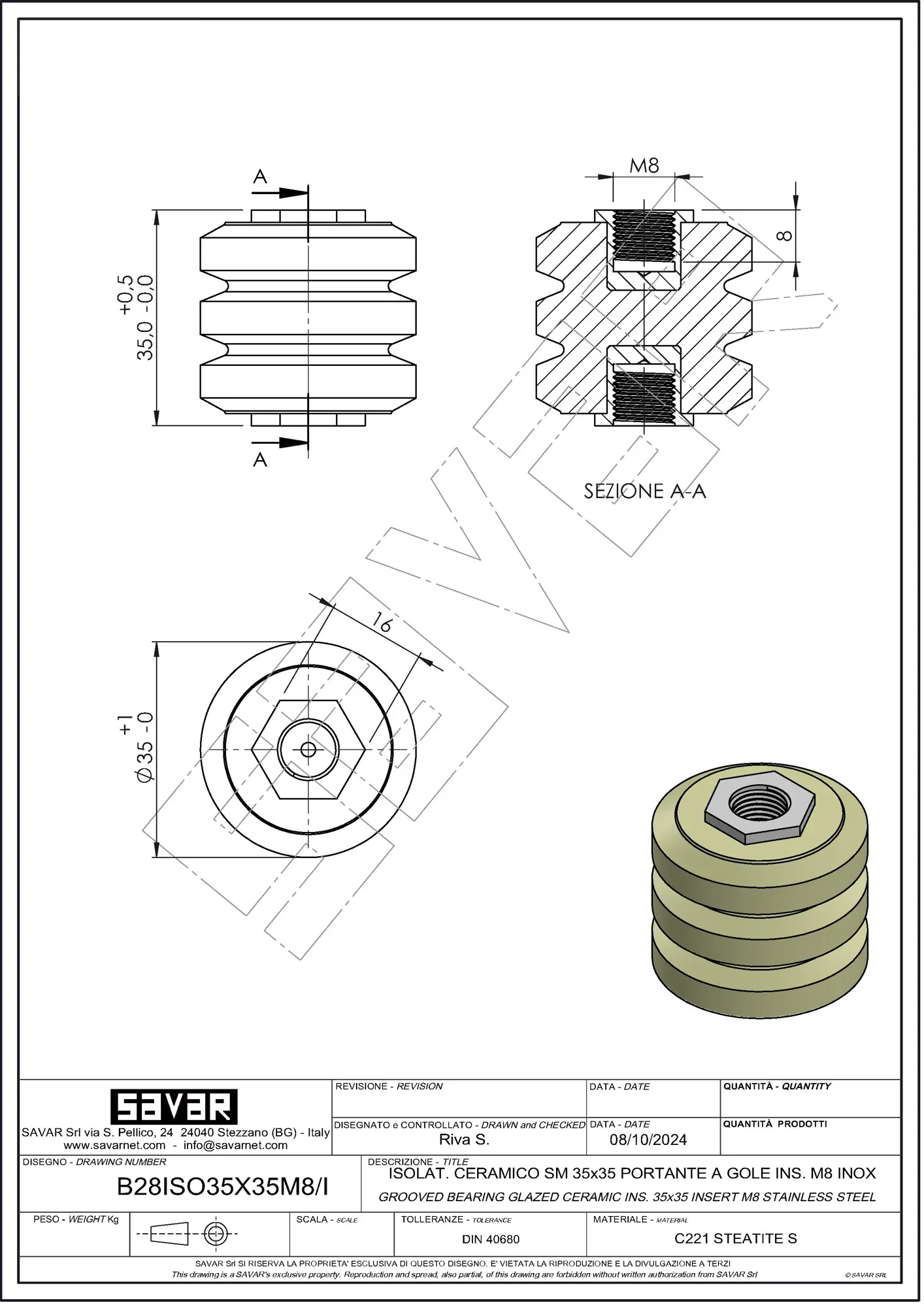

Disegno-tecnico-B28ISO35X35M8-I-Technical-drawing-B28ISO35X35M8-I.pdf (202 kb)
Data sheet B28ISO35X35M8-I.pdf (95 kb)
Scheda tecnica B28ISO35X35M8-I.pdf (94 kb)
Do you need custom products?
Technical Ceramic designs and manufactures custom products to your specifications
Request custom product
