Ceramic post insulator M10 stainless steel insert

code B28ISO50X50M10/I
CERAMIC POST INSULATOR S50 M10

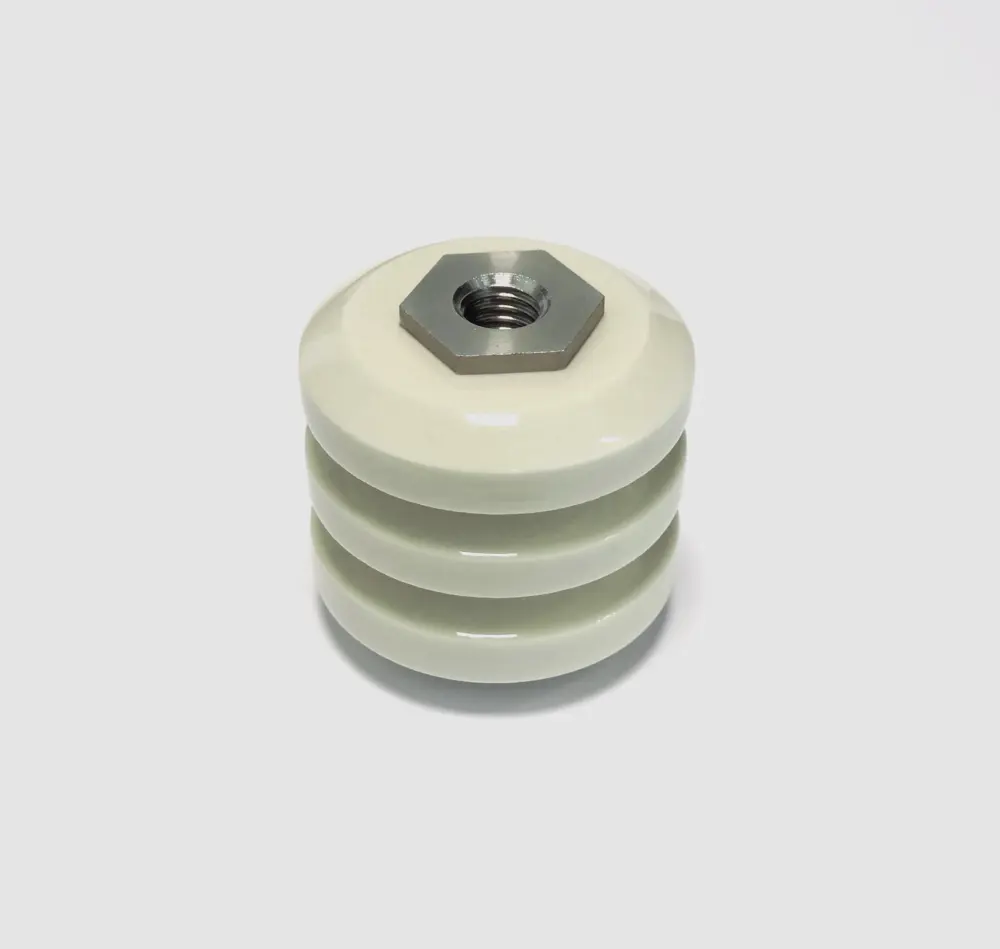

Ceramic post insulator with M10 stainless steel inserts.

Ideal solution for equipment exposed to highly aggressive environments, for indoor and outdoor environments.

The glazed surface guarantees a fast and accurate cleaning.

The ceramic material offers the maximum guarantee against the risk of fire spreading.





Housing materialTechnical ceramic C221
Inserts materialStainless steel
Temperature of use -50°C ÷ 300°C
Creepage line lenght120 mm
Dielectric test at dry condition14kV-60s-50Hz

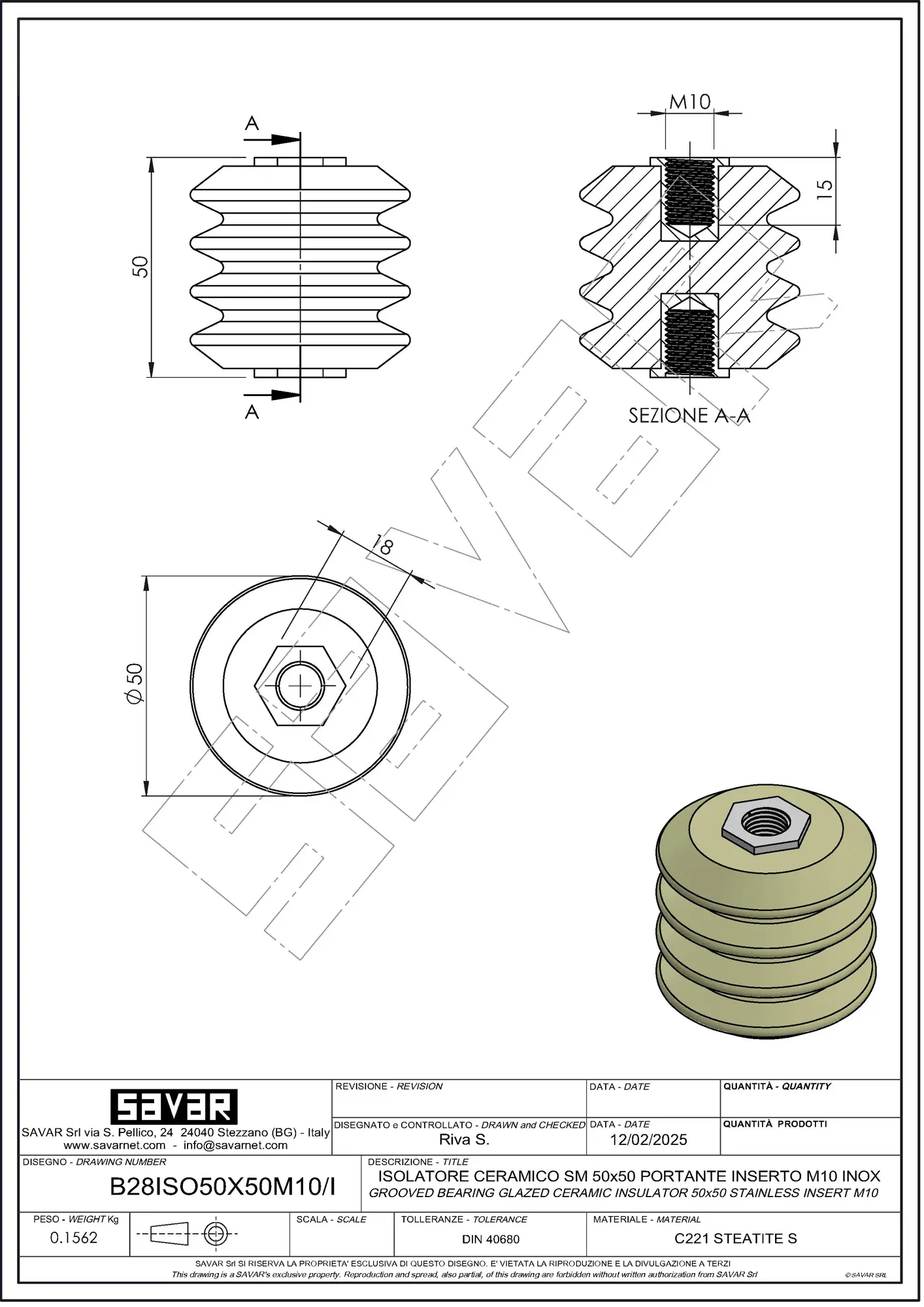

Disegno tecnico-B28ISO50X50M10-I-Technical drawing-B28ISO50X50M10-I.pdf (228 kb)
Data sheet B28ISO50x50M10-I.pdf (94 kb)
Scheda tecnica B28ISO50x50M10-I.pdf (94 kb)
